A custom dashboard is a report you compose yourself. You place widgets on a grid, arrange and size them, and either keep the result for your own use or publish it at a public link a client can open without an account. Widgets read the project’s Keyword rankings, AI Visibility and Organic traffic data over the last 30 days, so the report stays current without you rebuilding it. Each dashboard belongs to one project. Any member of the company can create, edit, share and delete a project’s dashboards.

​
Where to find it

Open a project and choose Reports → Custom Dashboards in the sidebar. The page lists every dashboard for the project as a card showing its name, how many widgets it holds and a green shared badge when a public link is on.
The Reports group, including Custom Dashboards, only appears while the project’s Overview report feature is on. If you can’t see it, turn the feature back on under Project Settings → Features (see Projects).

​
Create a dashboard

1

Start a new dashboard

On the Custom Dashboards page, click New dashboard. Visibility creates an Untitled dashboard and opens it in the builder.
2

Name it

Type a name in the toolbar field. Clients see this name at the top of the shared page, so make it descriptive, for example Monthly SEO report.
3

Add widgets

Click Add widget and pick a widget from the Keyword Ranking, AI Visibility, Organic Traffic or Text group. Each new card lands at the bottom of the canvas and scrolls into view.
4

Arrange and configure

Drag cards into place, resize them from the bottom-right corner, and use the gear on a card to set its options. The sections below cover each control.
5

Save

Click Save. The button stays greyed out until something has changed, so if it’s disabled your layout is already stored.

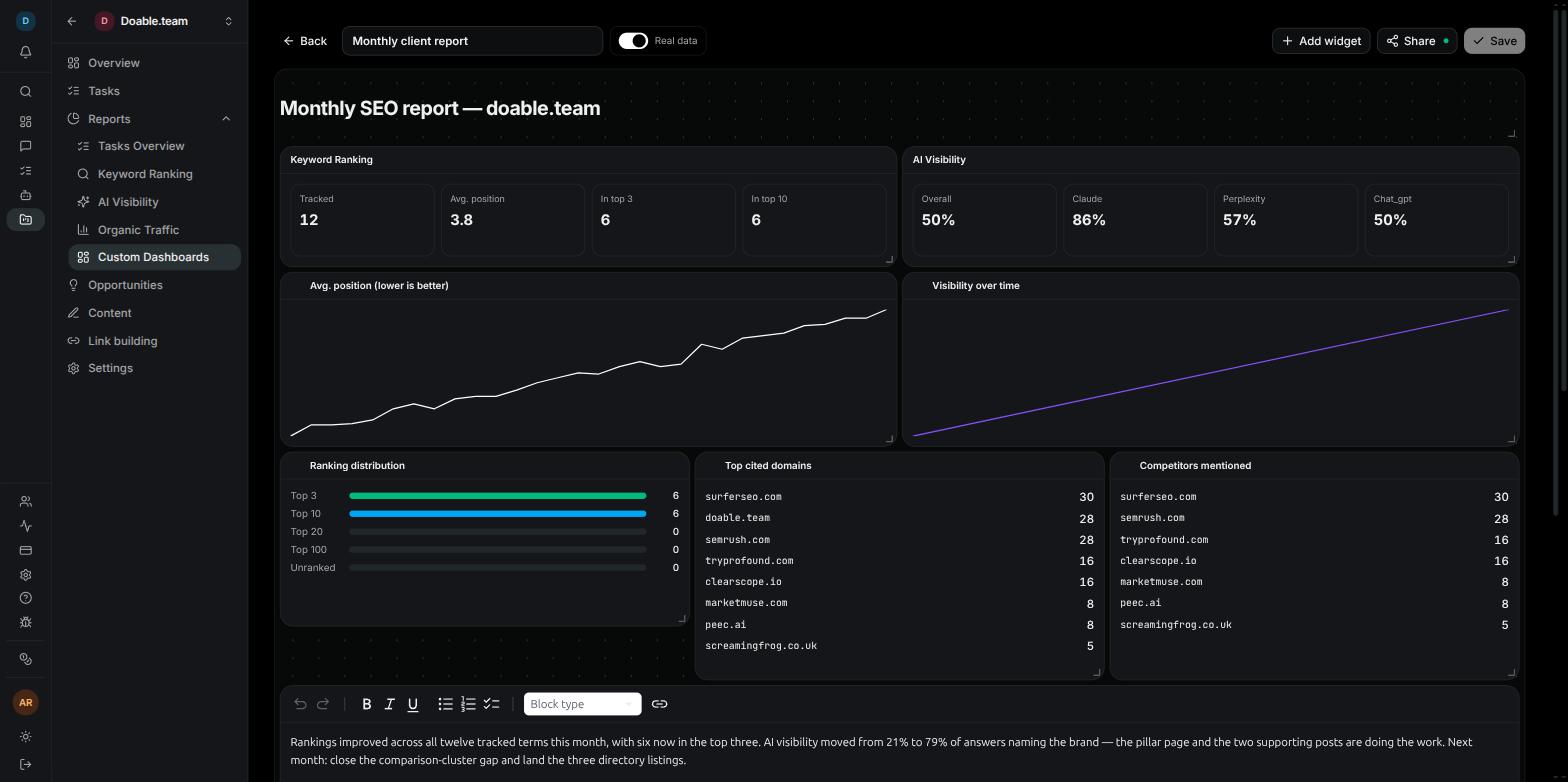

The dashboard builder: name field and Placeholder switch on the left, Add widget, Share and Save on the right, and the widget canvas beneath.

Click Back in the toolbar to return to the dashboard list.

​
The builder

​
Placeholder or real data

New dashboards open with Placeholder selected beside the name. In this mode every widget shows clearly labelled sample data, such as Dummy keyword 1, and an information notice reading This is placeholder data sits under the canvas. Placeholder data exists so you can design a report before the project has anything to show. A project that was created this morning has no rankings, no AI Visibility checks and perhaps no Google connection yet, but you can still lay out the report you want and save it. As real data arrives, the same layout fills in. Flip the switch to Real data to preview the project’s own numbers. The preview covers the same 30-day window the shared page uses, so what you see is what a client will see. The shared link always renders real data, whichever mode the builder is in.

​
Add a widget

Add widget opens a menu with four groups and 13 widgets. Widget names below are the labels in that menu.
A few cards carry a different title on the canvas from their menu label: Keyword KPIs appears as “Keyword Ranking”, Visibility score as “AI Visibility”, Avg. position trend as “Avg. position (lower is better)”, Visibility trend as “Visibility over time”, and both Traffic KPIs and Traffic trend as “Organic Traffic”. This page uses the menu labels throughout.
Data widgets only have something to show once the matching feature has data: tracked keywords with at least one refresh for the Keyword Ranking group, at least one completed check for the AI Visibility group, and a Google connection on the project for the Organic Traffic group. Until then, use Placeholder to keep designing.

​
Arrange widgets

Hover a card to reveal its controls:
  • Move handle — in the centre of a data card, or in the corner cluster of a Heading or Text block. Drag it to reposition the card. Cards snap to the grid.
  • Resize corner — bottom-right. Drag it to change the card’s width and height.
  • Clone and remove icons — top-right. Clone copies just that widget, with its options, and places it beside or directly below the original. Remove takes the card off the canvas.
  • Options gear — top-left, only on widgets that have options (see below).
Widgets are wide by default. If you want two cards side by side, shrink each from its resize corner first, then drag the second one up next to the first.
On a phone the builder is view-only: widgets stack in a single column in reading order, and you can’t drag, resize or save a layout. Use a desktop or laptop to arrange a dashboard.

​
Widget options

Widgets with a gear icon have settings that are saved with the dashboard. There are three kinds. Counts. A number of rows to show. Each has a minimum and no maximum; if the project has less data than you ask for, the card simply shows fewer rows. Narrow to. The three trend widgets, Avg. position trend, Visibility trend and Traffic trend, default to the full 30 days. Choose 7d or 14d to zoom in on the most recent stretch. A chart can show less than the 30-day report, never more. Picks. A checklist of what to include. At least one item must stay checked.
  • Ranking distribution → Bands to show: Top 3, Top 10, Top 20, Top 100, Unranked. All on by default.
  • Traffic KPIs → Tiles to show: Sessions, Users, New users, Engagement, Bounce rate, Avg. time, Clicks, Impressions, CTR, Avg. position. The default set is Sessions, Users, Clicks and Impressions.

​
Heading and Text block

The two Text widgets let you turn a grid of charts into a report that reads well.
  • Heading spans the full width by default and is meant for a report title or section divider, such as “Rankings” above the keyword cards. Its style panel offers alignment, italic and serif toggles, a Size of SM, MD, LG or XL, a Weight, a Colour, and a Background switch that gives the heading a filled band.
  • Text block is a smaller card for free text: a summary paragraph for the client, notes on what changed this month, or a call to action.
Both are moved from the handle in their corner cluster rather than the centre, so the text itself stays editable.

​
Save

Save writes the name, layout and every widget’s options. It is enabled only while there are unsaved changes. Switching between Placeholder and Real data is a preview choice and doesn’t need saving.

​
Duplicate or delete a dashboard

Both actions live on the Custom Dashboards list. Hover a card to reveal the icons.
1

Duplicate

Click the copy icon (Duplicate this dashboard). Visibility creates a new dashboard named after the original with “(copy)” added, holding the same widgets and options. The copy is not shared, even if the original is, so you can adapt it for another audience before publishing it.
2

Delete

Click the trash icon, then confirm with Delete dashboard in the Delete this dashboard? dialog. Deleting a dashboard removes its widgets and immediately disables its public link.

​
Share a dashboard with a client

Sharing publishes a read-only copy of the dashboard at a public link. Anyone with the link can open it; no Visibility account is needed.
1

Open the share dialog

In the builder, click Share. The Share dashboard dialog opens.
2

Turn the public link on

Switch Public link on. A link of the form https://app.visibility.so/share/dashboard/… appears with a copy button. The Share button in the toolbar now shows a green dot, and the dashboard’s card on the list gains the shared badge.
3

Add a password (optional)

Type a password of at least 4 characters into the Password box and click Set. Visitors must enter it before the dashboard loads. Click Remove to clear the password later.
4

Send the link

Copy the link and share it with your client. Send the password separately if you set one.

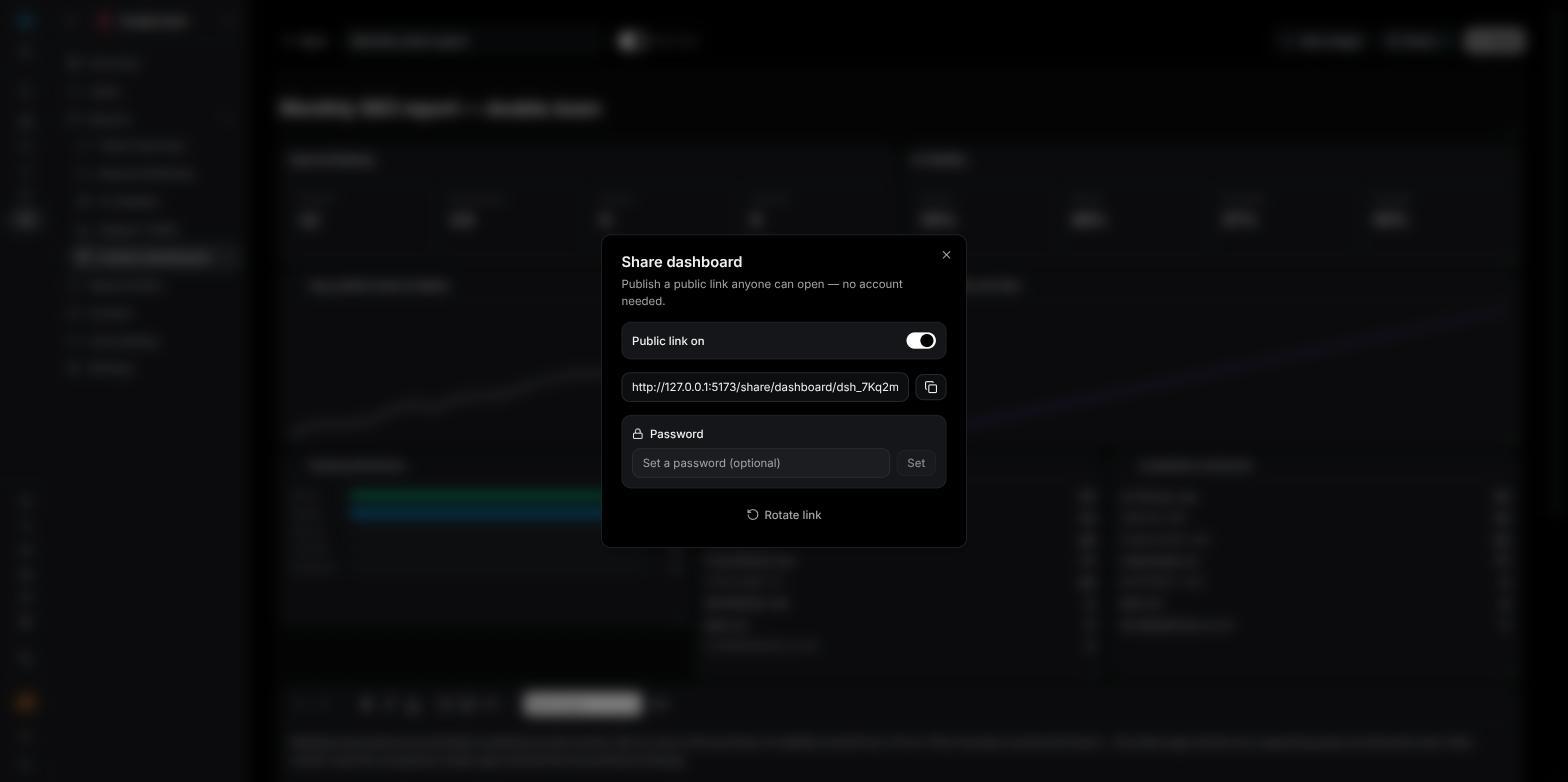

The Share dashboard dialog with the public link on, the copy button, the Password box and Rotate link.

​
What your client sees

The shared page is read-only and always uses real data. It shows:
  • the dashboard name and the project name, with the Visibility logo
  • every widget, rendered from the project’s data for the last 30 days, using the options you saved
  • a Shared via Visibility footer
On a phone the widgets stack into a single column in reading order. If the link is password-protected, visitors first see a Password required card and click View dashboard after entering it. If the link has been switched off, rotated, or mistyped, they see Link unavailable — This dashboard link is invalid or is no longer being shared.
Organic Traffic widgets on a shared link use the Google connection of the person who created the dashboard. If that person disconnects Google or leaves the company, the Traffic KPIs and Traffic trend cards on the public page show “Not connected / no data” while everything else keeps working. When a client report depends on traffic widgets, create it from an account whose Google connection will stay in place, or check the shared page after any change to the project’s integrations.
Back in the Share dashboard dialog:
  • Rotate link invalidates the current link and creates a new one. Use it when a link has reached people it shouldn’t have; anyone holding the old link sees Link unavailable from then on.
  • Switch Public link off to stop sharing entirely. Your dashboard and its layout are untouched, and you can turn the link back on later.
Deleting the dashboard also takes its link offline.
